Exploratory Data Analysis

Notebook github link

Load our data: Housing data set, with house prices

import pandas as pd
from sklearn.datasets import fetch_openml
housing = fetch_openml(name="house_prices", as_frame=True)
X = pd.DataFrame(housing.data, columns=housing.feature_names)
X.drop('Id',axis=1,inplace=True)
y = housing.target
X.head()
MSSubClass MSZoning LotFrontage LotArea Street Alley LotShape LandContour Utilities LotConfig ... ScreenPorch PoolArea PoolQC Fence MiscFeature MiscVal MoSold YrSold SaleType SaleCondition
0 60.0 RL 65.0 8450.0 Pave None Reg Lvl AllPub Inside ... 0.0 0.0 None None None 0.0 2.0 2008.0 WD
1 20.0 RL 80.0 9600.0 Pave None Reg Lvl AllPub FR2 ... 0.0 0.0 None None None 0.0 5.0 2007.0 WD
2 60.0 RL 68.0 11250.0 Pave None IR1 Lvl AllPub Inside ... 0.0 0.0 None None None 0.0 9.0 2008.0 WD
3 70.0 RL 60.0 9550.0 Pave None IR1 Lvl AllPub Corner ... 0.0 0.0 None None None 0.0 2.0 2006.0 WD
4 60.0 RL 84.0 14260.0 Pave None IR1 Lvl AllPub FR2 ... 0.0 0.0 None None None 0.0 12.0 2008.0 WD

Example 1: Dataframe evaluation

  • Demonstrate size of the data set (rows, columns)
  • Identify the numerical columns
  • Identify the categorical columns
  • Identify the number of unique categories in the feature SaleCondition
    • Put these into dummy columns
print(X.shape)

(1460, 79)

numerical_columns = [j for j in X.columns if X[j].dtype in [float,int]]
X[numerical_columns].head()
MSSubClass LotFrontage LotArea OverallQual OverallCond YearBuilt YearRemodAdd MasVnrArea BsmtFinSF1 BsmtFinSF2 ... GarageArea WoodDeckSF OpenPorchSF EnclosedPorch 3SsnPorch ScreenPorch PoolArea MiscVal MoSold YrSold
0 60.0 65.0 8450.0 7.0 5.0 2003.0 2003.0 196.0 706.0 0.0 ... 548.0 0.0 61.0 0.0 0.0 0.0 0.0 0.0 2.0
1 20.0 80.0 9600.0 6.0 8.0 1976.0 1976.0 0.0 978.0 0.0 ... 460.0 298.0 0.0 0.0 0.0 0.0 0.0 0.0 5.0
2 60.0 68.0 11250.0 7.0 5.0 2001.0 2002.0 162.0 486.0 0.0 ... 608.0 0.0 42.0 0.0 0.0 0.0 0.0 0.0 9.0
3 70.0 60.0 9550.0 7.0 5.0 1915.0 1970.0 0.0 216.0 0.0 ... 642.0 0.0 35.0 272.0 0.0 0.0 0.0 0.0 2.0
4 60.0 84.0 14260.0 8.0 5.0 2000.0 2000.0 350.0 655.0 0.0 ... 836.0 192.0 84.0 0.0 0.0 0.0 0.0 0.0 12.0
categorical_columns = [j for j in X.columns if j not in numerical_columns]
X[categorical_columns].head()
MSZoning Street Alley LotShape LandContour Utilities LotConfig LandSlope Neighborhood Condition1 ... GarageType GarageFinish GarageQual GarageCond PavedDrive PoolQC Fence MiscFeature SaleType SaleCondition
0 RL Pave None Reg Lvl AllPub Inside Gtl CollgCr Norm ... Attchd RFn TA TA Y None None None WD
1 RL Pave None Reg Lvl AllPub FR2 Gtl Veenker Feedr ... Attchd RFn TA TA Y None None None WD
2 RL Pave None IR1 Lvl AllPub Inside Gtl CollgCr Norm ... Attchd RFn TA TA Y None None None WD
3 RL Pave None IR1 Lvl AllPub Corner Gtl Crawfor Norm ... Detchd Unf TA TA Y None None None WD
4 RL Pave None IR1 Lvl AllPub FR2 Gtl NoRidge Norm ... Attchd RFn TA TA Y None None None WD

5 rows × 43 columns

print(X['SaleCondition'].describe(),'\n')
print(X['SaleCondition'].unique())
X['SaleCondition'].head()

count       1460
unique         6
top       Normal
freq        1198
Name: SaleCondition, dtype: object

['Normal' 'Abnorml' 'Partial' 'AdjLand' 'Alloca' 'Family']

0     Normal
1     Normal
2     Normal
3    Abnorml
4     Normal
Name: SaleCondition, dtype: object

pd.get_dummies(X['SaleCondition'])
Abnorml AdjLand Alloca Family Normal Partial
0 0 0 0 0 1
1 0 0 0 0 1
2 0 0 0 0 1
3 1 0 0 0 0
4 0 0 0 0 1
... ... ... ... ... ...
1455 0 0 0 0 1
1456 0 0 0 0 1
1457 0 0 0 0 1
1458 0 0 0 0 1
1459 0 0 0 0 1

1460 rows × 6 columns

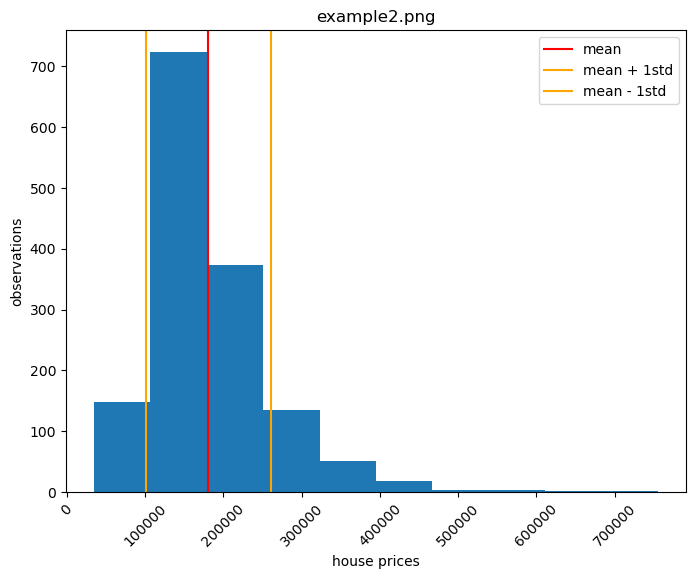

Example 2: House Price histograms

  • Include a vertical bars indicating the mean price
  • Include vertical bars indicating the mean minus and plus 1 standard deviation
import matplotlib.pyplot as plt
plt.figure(figsize=(8,6))
plt.hist(y)
plt.xticks(rotation=45)
plt.title('example2.png')
plt.xlabel('house prices')
plt.ylabel('observations')
plt.axvline(y.mean(),c='red',label='mean')
plt.axvline(y.mean()+y.std(),c='orange',label='mean + 1std')
plt.axvline(y.mean()-y.std(),c='orange',label='mean - 1std')
plt.legend()
plt.savefig('example2.png')
plt.show()

png

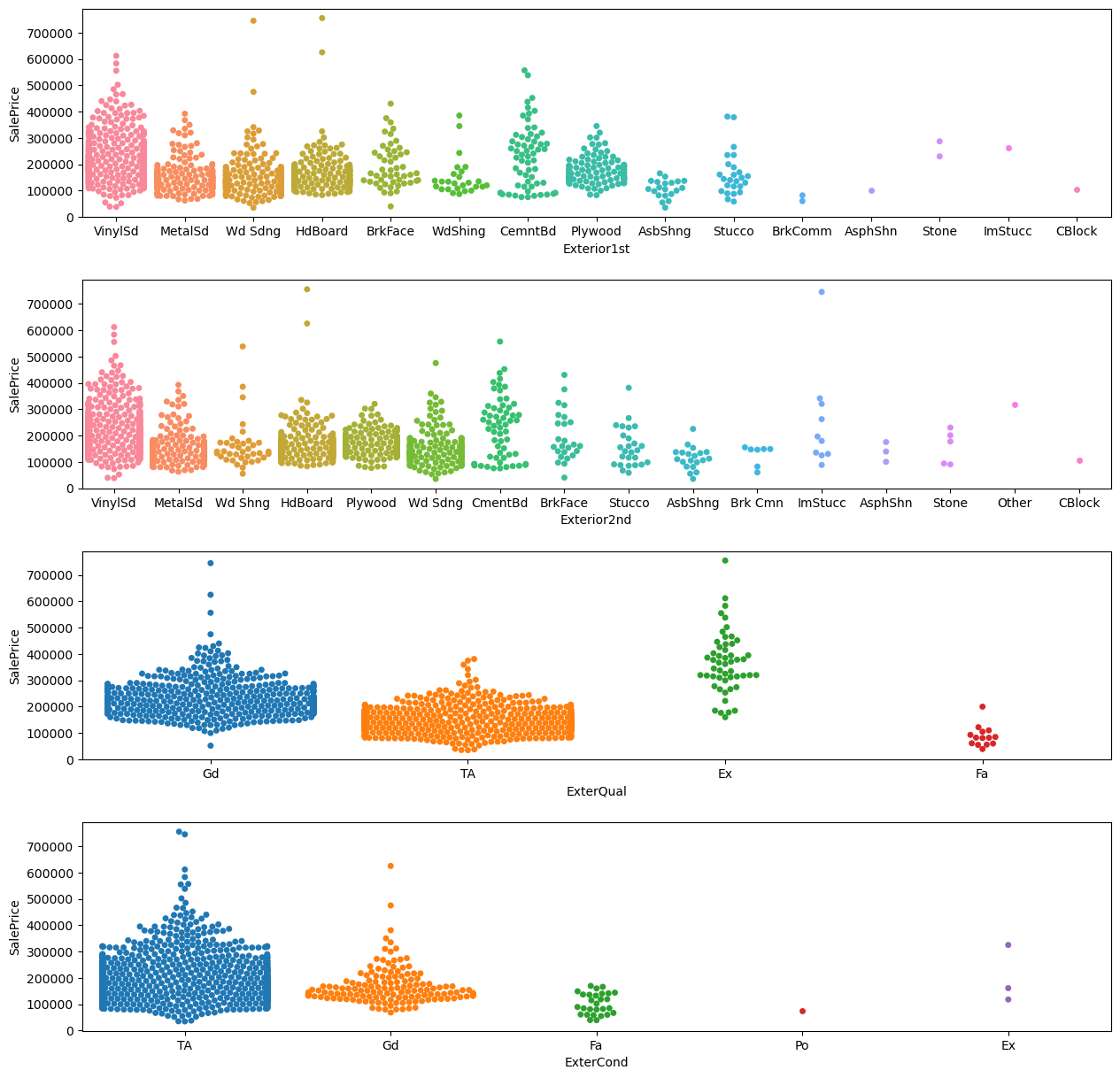

Example 3: Beeswarm plots

categorical_features = ['Exterior1st','Exterior2nd','ExterQual','ExterCond']

import seaborn as sns
import warnings
warnings.filterwarnings('ignore')
n=1
categorical_features = ['Exterior1st','Exterior2nd','ExterQual','ExterCond']
plt.subplots(figsize=(15,15))
for col in categorical_features:
    plt.subplot(len(categorical_features),1,n)
    plt.ylabel('SalePrice')
    sns.swarmplot(x=col,y='SalePrice',data=pd.concat([X,y],axis=1))
    n=n+1
plt.subplots_adjust(hspace=0.3)
plt.savefig('example3.png')
plt.show()

png

Example 4: Feature Pearson Correlation

Find the pearson correlation coefficient for all the numerical features, as compared to the target variable SalePrice. Sort them in a dataframe

from scipy.stats import pearsonr
numerical_columns = [j for j in X.columns if X[j].dtype in [float,int]]
coefs = {}
for col in numerical_columns:
    _ = pd.concat([X[col],y],axis=1).dropna()
    pearson_coef = round(pearsonr(_[col],_['SalePrice'])[0],3)
    coefs[col] = [pearson_coef]
coefficients = pd.DataFrame(coefs).transpose().sort_values(by=0,ascending=False)
coefficients.columns = ['Pearson correlation coefficient']
coefficients
Feature Pearson coefficient
OverallQual 0.791
GrLivArea 0.709
GarageCars 0.640
GarageArea 0.623
TotalBsmtSF 0.614
1stFlrSF 0.606
FullBath 0.561
TotRmsAbvGrd 0.534
YearBuilt 0.523
YearRemodAdd 0.507
GarageYrBlt 0.486
MasVnrArea 0.477
Fireplaces 0.467
BsmtFinSF1 0.386
LotFrontage 0.352
WoodDeckSF 0.324
2ndFlrSF 0.319
OpenPorchSF 0.316
HalfBath 0.284
LotArea 0.264
BsmtFullBath 0.227
BsmtUnfSF 0.214
BedroomAbvGr 0.168
ScreenPorch 0.111
PoolArea 0.092
MoSold 0.046
3SsnPorch 0.045
BsmtFinSF2 -0.011
BsmtHalfBath -0.017
MiscVal -0.021
LowQualFinSF -0.026
YrSold -0.029
OverallCond -0.078
MSSubClass -0.084
EnclosedPorch -0.129
KitchenAbvGr -0.136

Example 5: Feature Mutual Information

Join the previous data frame with the mutual information between the target SalePrice and the associated numerical feature.

import numpy as np
from sklearn.feature_selection import mutual_info_regression
mir = mutual_info_regression(X[numerical_columns].fillna(X[numerical_columns].mean()),y)
mir = pd.DataFrame(mir)
mir.index = numerical_columns
coefficients['mutual_information'] = mir.apply(lambda x: round(x,3))
coefficients
Feature mutual_information pearson correlation coefficient
OverallQual 0.791 0.563
GrLivArea 0.709 0.483
GarageCars 0.640 0.357
GarageArea 0.623 0.366
TotalBsmtSF 0.614 0.366
1stFlrSF 0.606 0.309
FullBath 0.561 0.258
TotRmsAbvGrd 0.534 0.224
YearBuilt 0.523 0.366
YearRemodAdd 0.507 0.246
GarageYrBlt 0.486 0.295
MasVnrArea 0.477 0.098
Fireplaces 0.467 0.167
BsmtFinSF1 0.386 0.145
LotFrontage 0.352 0.197
WoodDeckSF 0.324 0.105
2ndFlrSF 0.319 0.199
OpenPorchSF 0.316 0.149
HalfBath 0.284 0.077
LotArea 0.264 0.156
BsmtFullBath 0.227 0.017
BsmtUnfSF 0.214 0.121
BedroomAbvGr 0.168 0.072
ScreenPorch 0.111 0.024
PoolArea 0.092 0.000
MoSold 0.046 0.000
3SsnPorch 0.045 0.005
BsmtFinSF2 -0.011 0.002
BsmtHalfBath -0.017 0.003
MiscVal -0.021 0.006
LowQualFinSF -0.026 0.014
YrSold -0.029 0.007
OverallCond -0.078 0.124
MSSubClass -0.084 0.275
EnclosedPorch -0.129 0.036
KitchenAbvGr -0.136 0.029

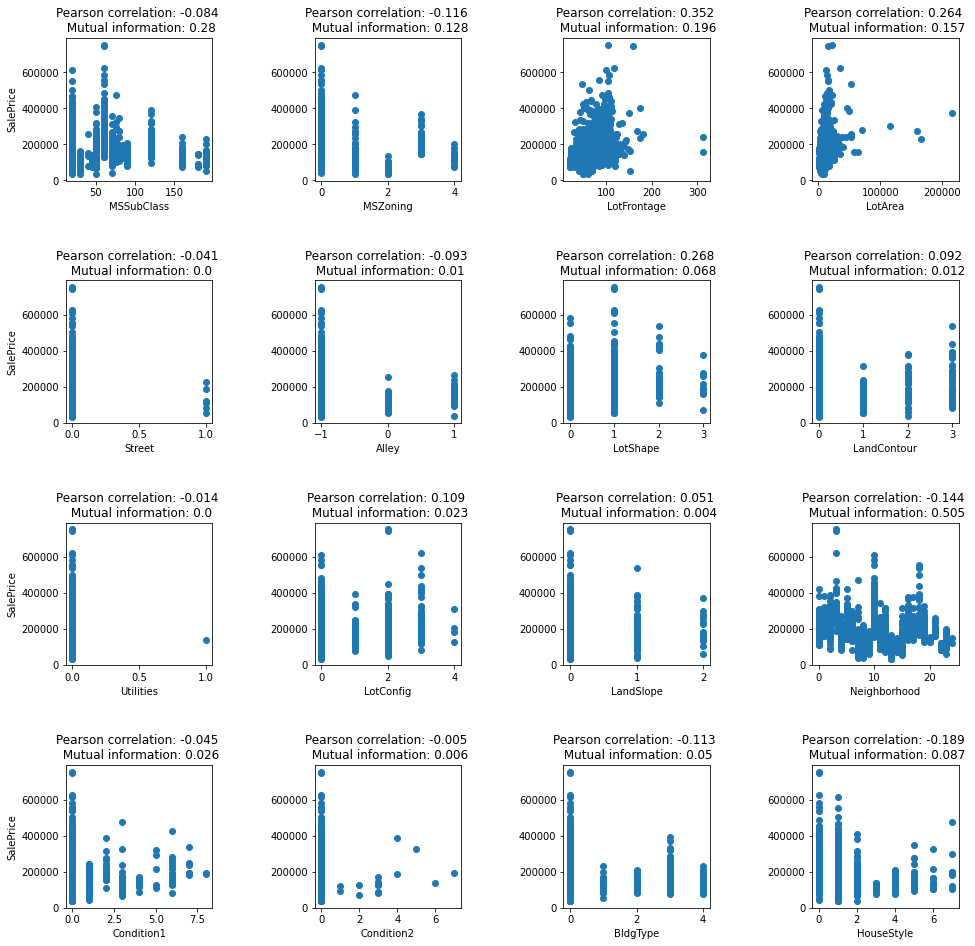

Example 6: Numerical features vs sale price

Make a scatter plot of numerical columns versus the sale price. * Include the Pearson correlation and mutual information in the title for each plot * Do this for 16 of the numerical features * Plot should be 4x4, as seen below.

n_numerical_features = 16
n=1
plt.figure(figsize=(16,16))
for col in numerical_columns[:16]:
    plt.subplot(4,4,n)
    plt.scatter(X[col],y)
    plt.xlabel(col)
    if (n-1)%4==0:
        plt.ylabel('SalePrice')
    pearson_coef = coefficients.loc[col]['Pearson correlation coefficient']
    mutual_info = coefficients.loc[col]['mutual_information']
    plt.title('Pearson correlation: {} \n Mutual information: {}'.format(pearson_coef,mutual_info))
    n=n+1
plt.subplots_adjust(hspace=0.7,wspace=0.7)
plt.savefig('example5.png')
plt.show()

png

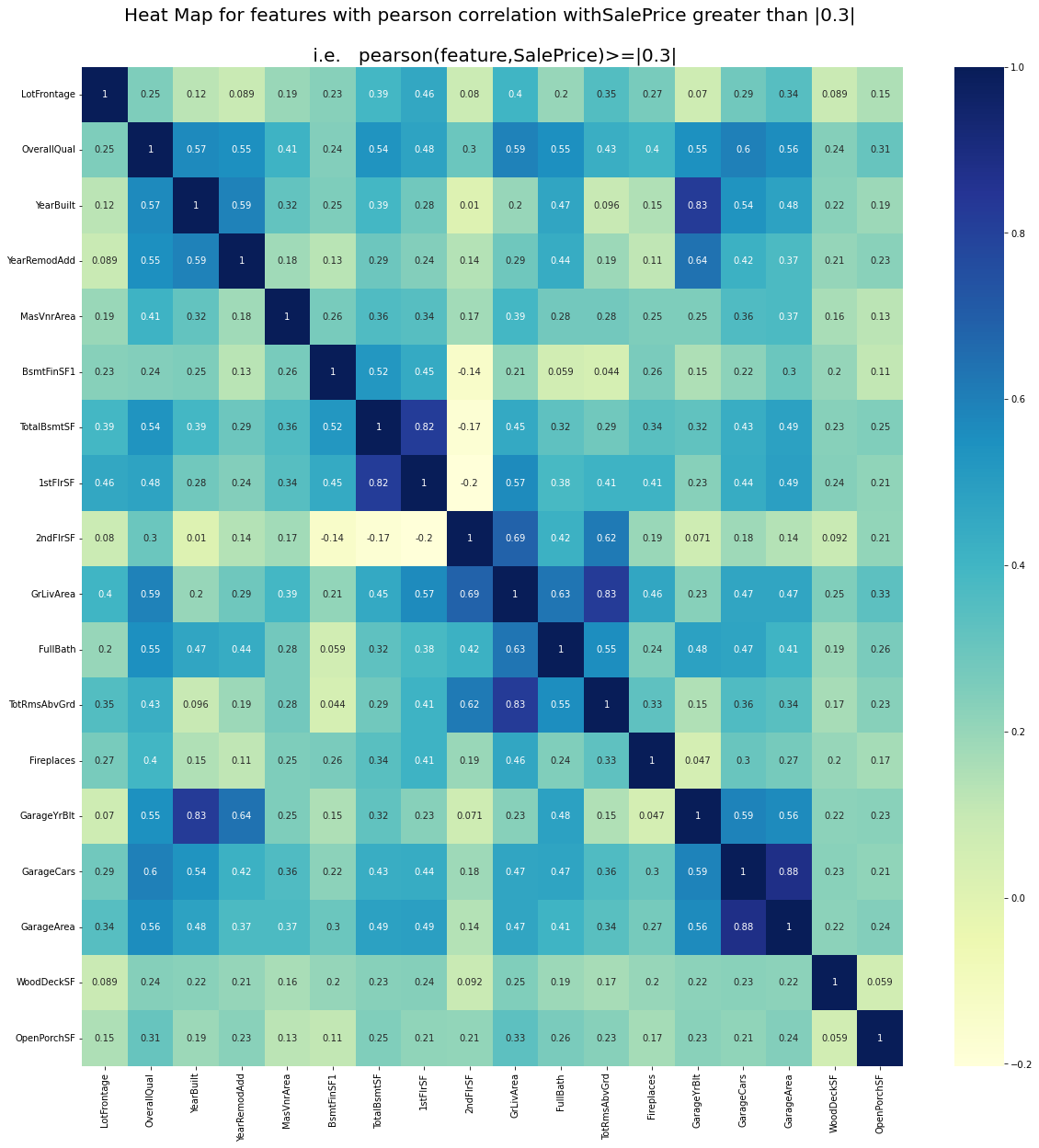

Example 7: Heatmap evaluation

** Make a heat map to describe the mutual correlation (pearson correlation coefficient) of the features that had a correlation coefficient with the target price greater than |+-0.3|.**

from seaborn import heatmap
import numpy as np
from scipy.stats import pearsonr
numerical_columns = [j for j in X.columns if X[j].dtype in [float,int]]
relevant_numerical = []
for col in numerical_columns:
    _ = pd.concat([X[col],y],axis=1).dropna()
    coef = round(pearsonr(_[col],_['SalePrice'])[0],3)
    if np.abs(coef)>0.3:
        relevant_numerical.append(col)

num_corr = X[relevant_numerical].corr()
plt.figure(figsize=(20,20))
heatmap(num_corr, cmap="YlGnBu", annot=True)
plt.title('Heat Map for features with pearson correlation withSalePrice greater than |0.3| \n\n i.e.   pearson(feature,SalePrice)>=|0.3|',fontsize=20)
plt.savefig('example6.png')
plt.show()

png

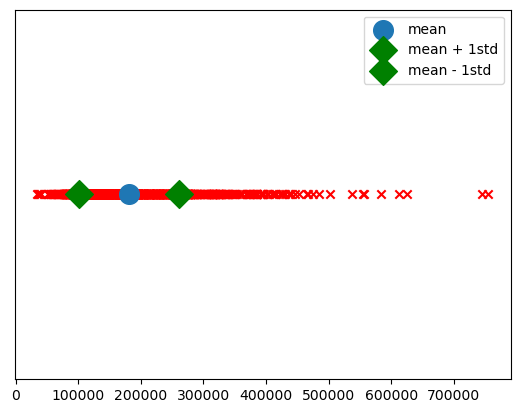

Example 8: Line plot the prices

import numpy as np
import matplotlib.pyplot as plt
val = 0. # this is the value where you want the data to appear on the y-axis.
ar = np.arange(10) # just as an example array

plt.scatter(y, np.zeros_like(y) + val,marker='x',c='red')
plt.scatter(y.mean(),0,label='mean',s=200)
plt.scatter(y.mean()+y.std(),0,label='mean + 1std',marker='D',s=200,color='green')
plt.scatter(y.mean()-y.std(),0,label='mean - 1std',marker='D',s=200,color='green')

ax = plt.gca()
ax.axes.yaxis.set_ticks([])
plt.legend()
plt.show()

png
